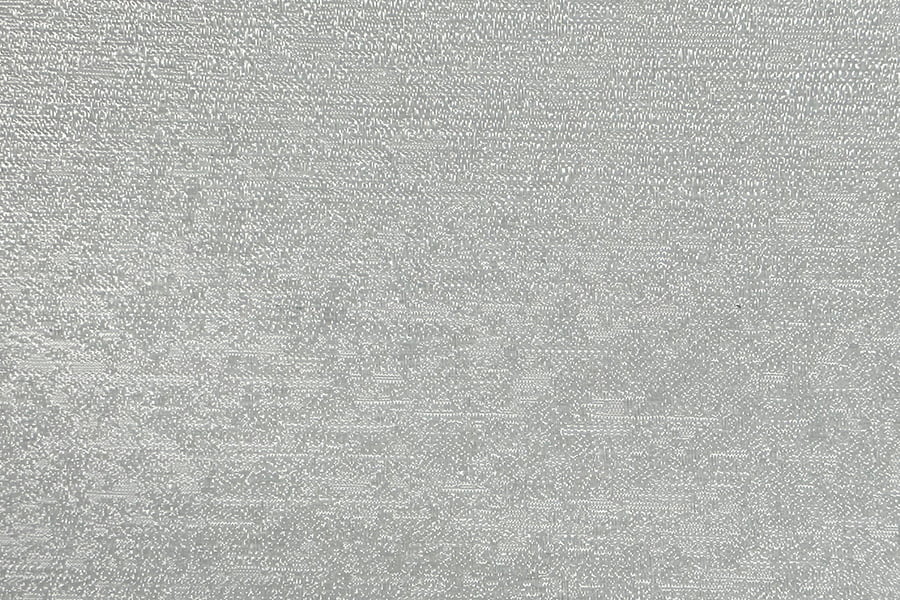

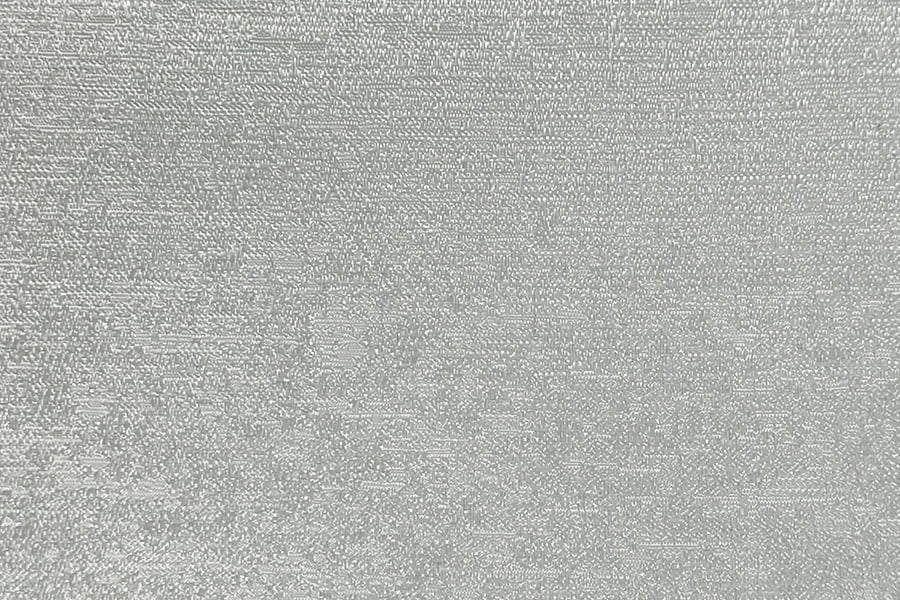

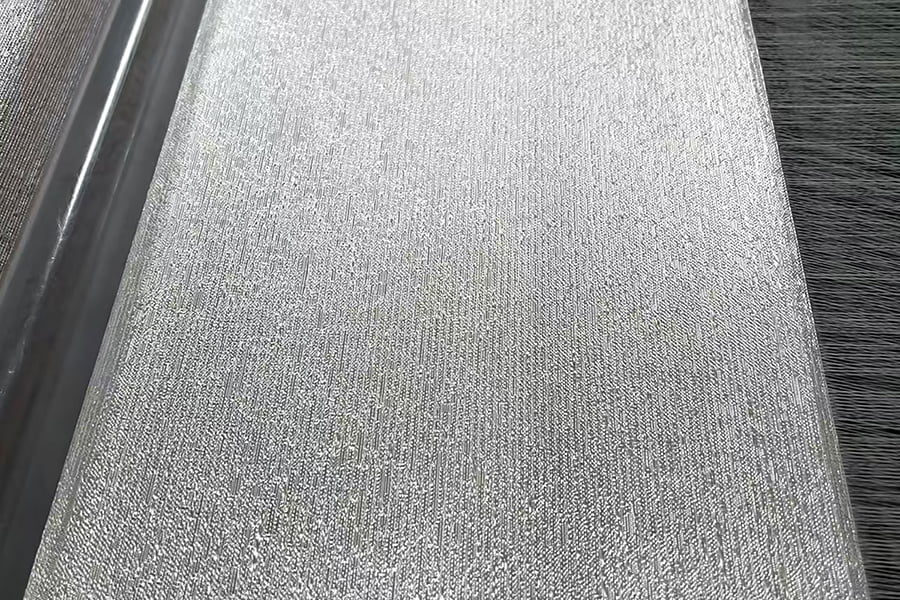

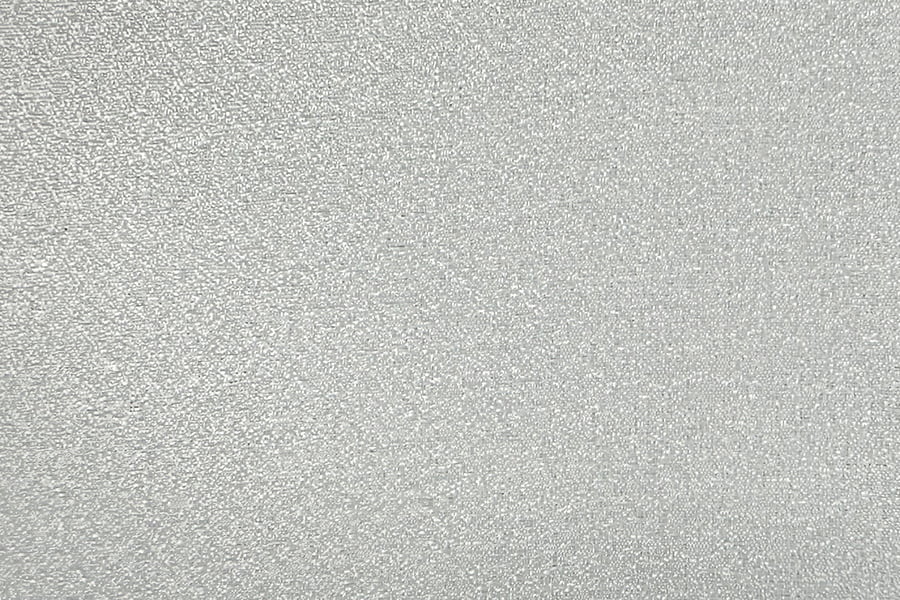

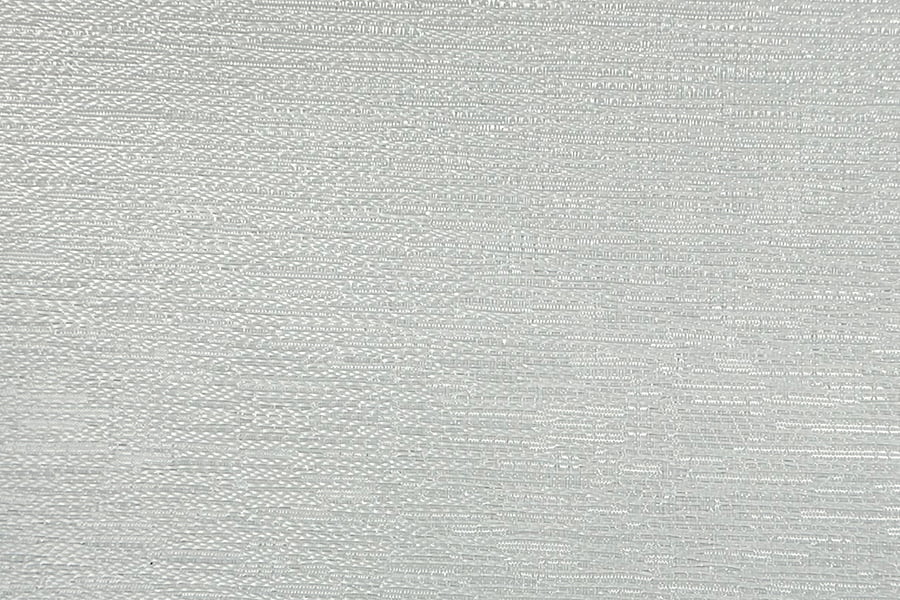

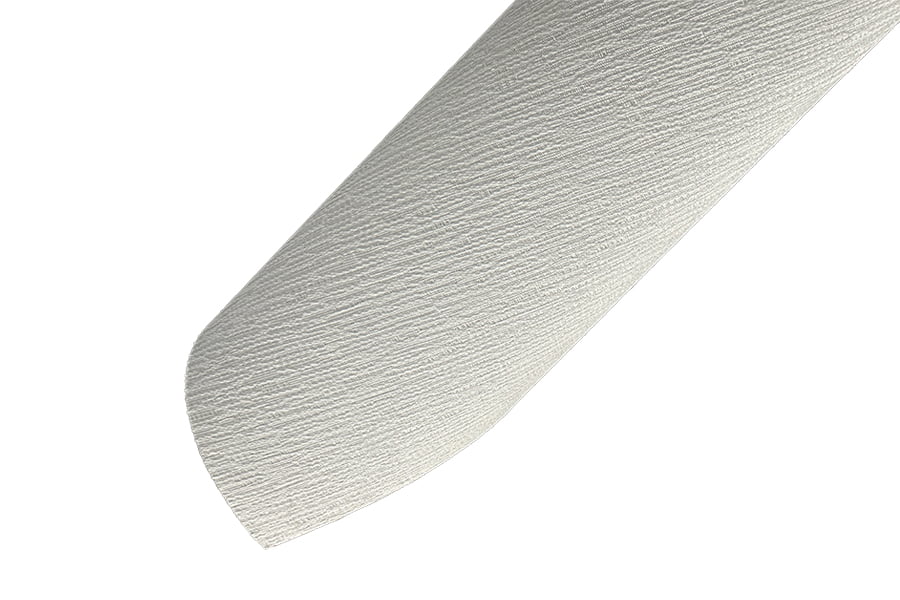

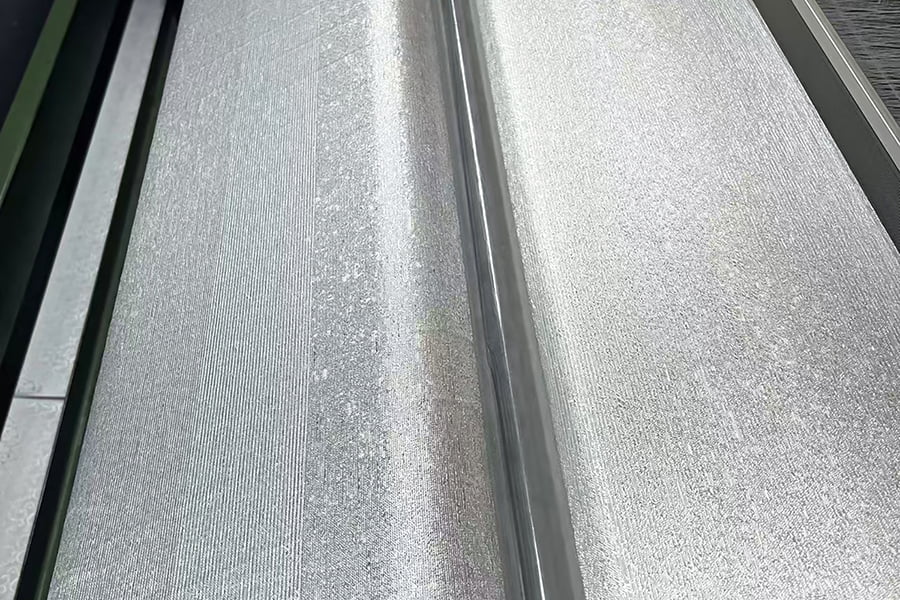

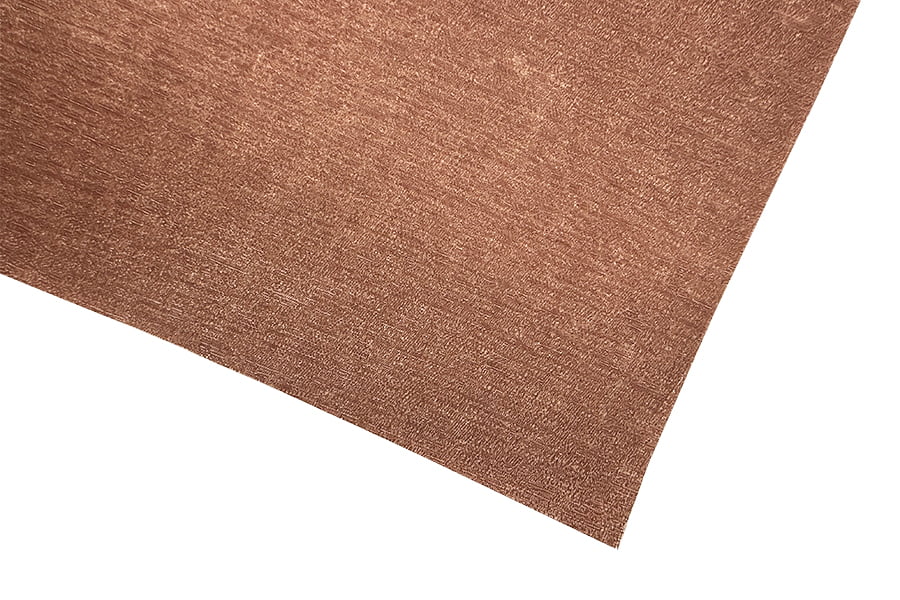

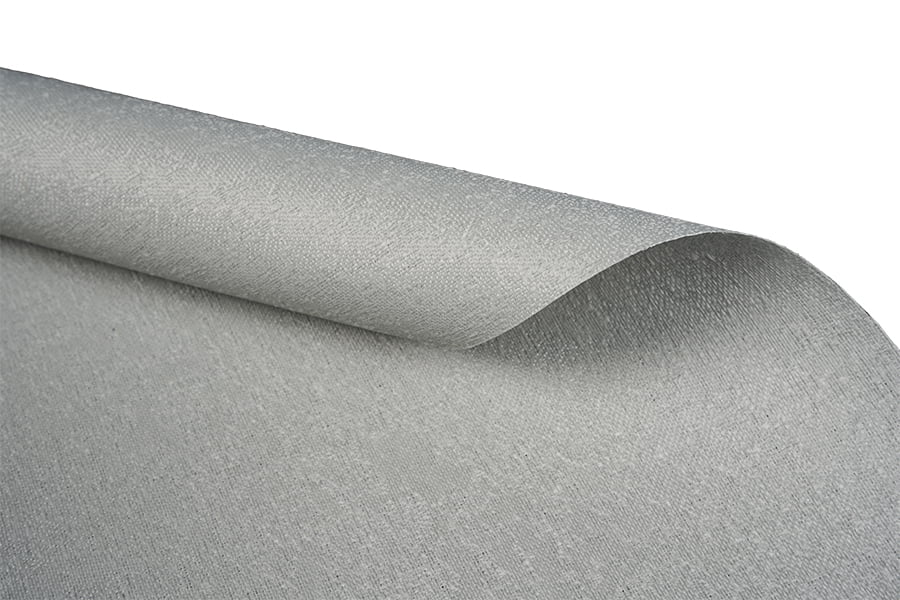

Waterproof and fireproof jacquard patterned fiberglass fabric – for wallcovering

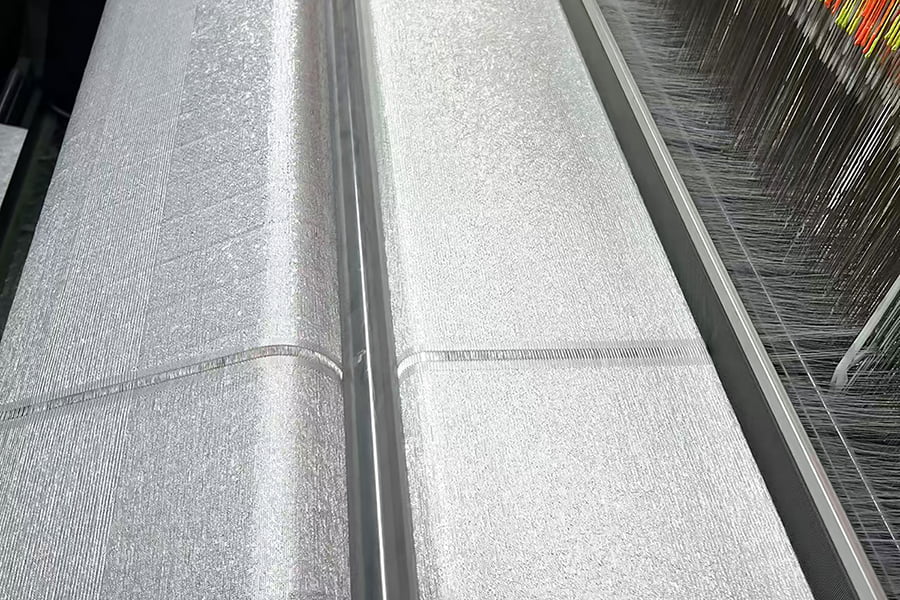

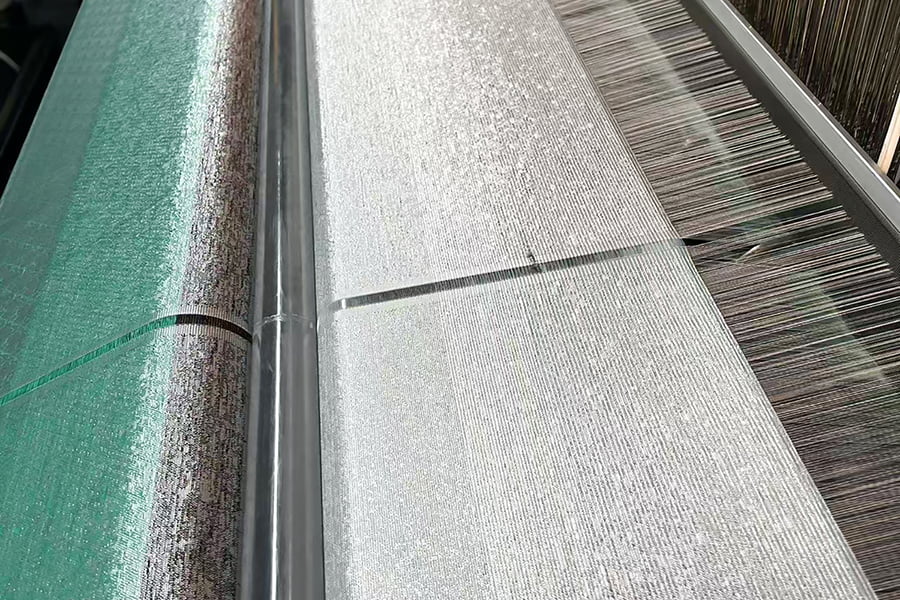

Jacquard fiberglass cloth is a kind of fabric with concave and convex patterns made by weaving glass fiber yarn through a jacquard machine. Its process is to use warp and weft to interlace different patterns and patterns, so that the surface of the fabric presents a rich and diverse design. Jacquard fiberglass cloth has the advantages of heat preservation, heat insulation, and fire prevention. It can be used as wall cloth, which can not only enhance fire safety performance, but also add beauty.

admin@gedfiberglass.com

Waterproof and Fireproof Jacquard Patterned Fiberglass Fabric

For wallcovering applications in commercial and residential interiors

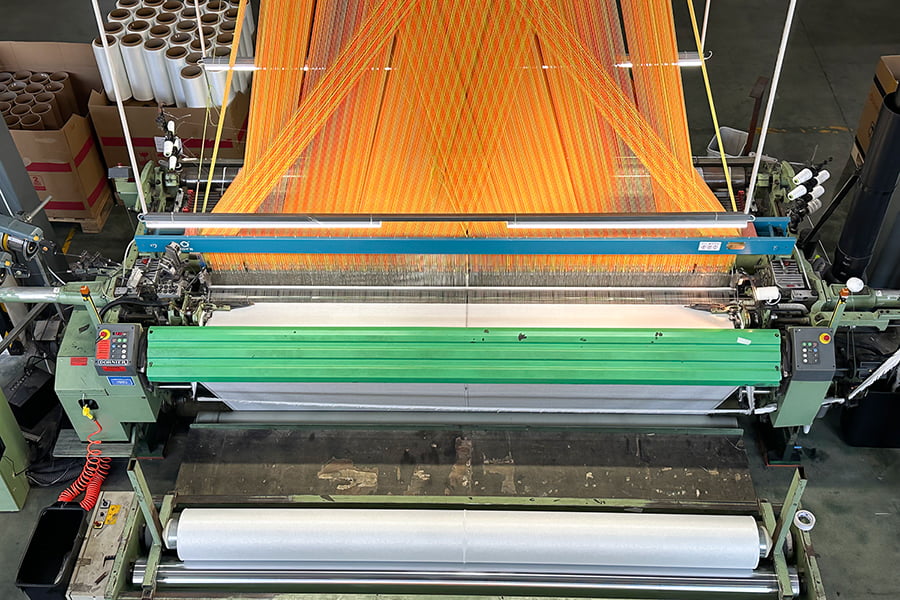

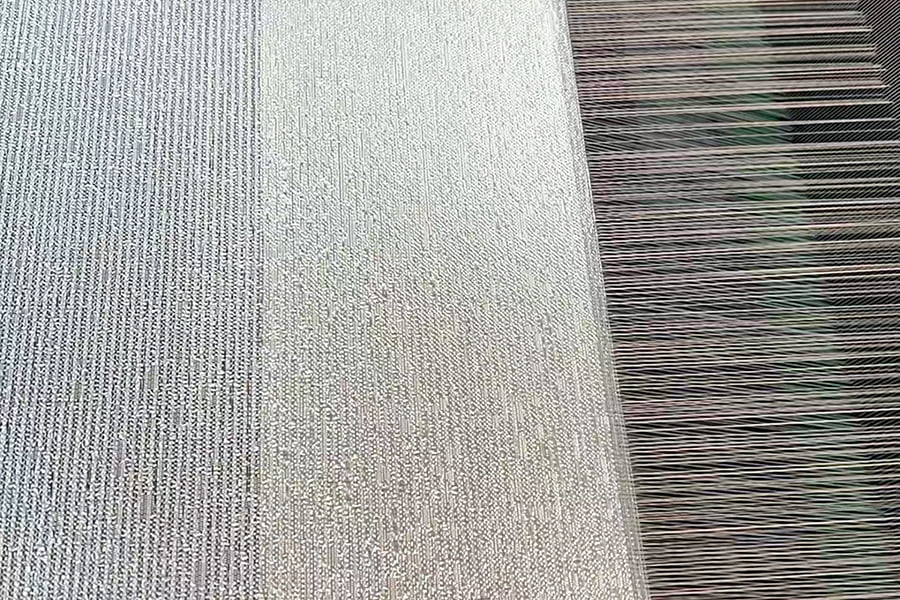

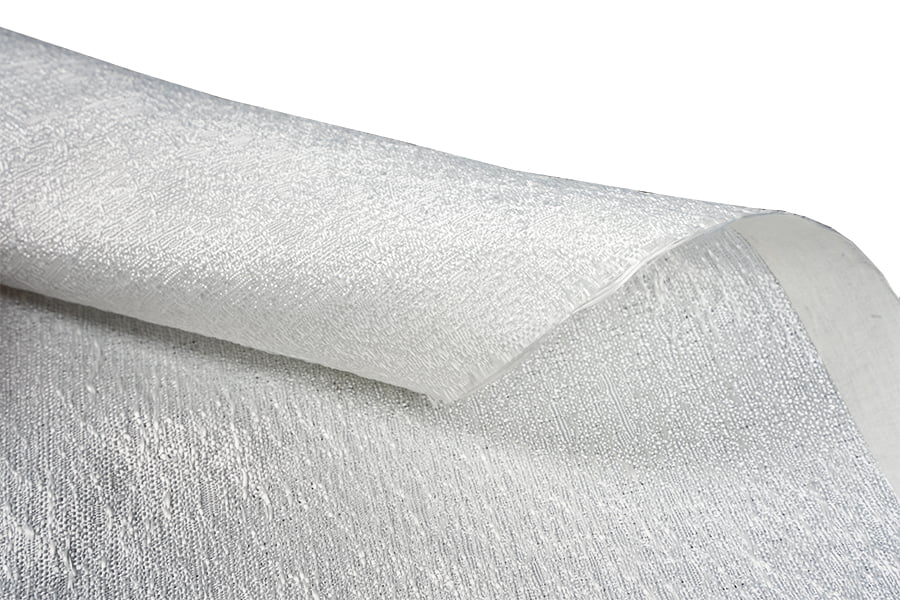

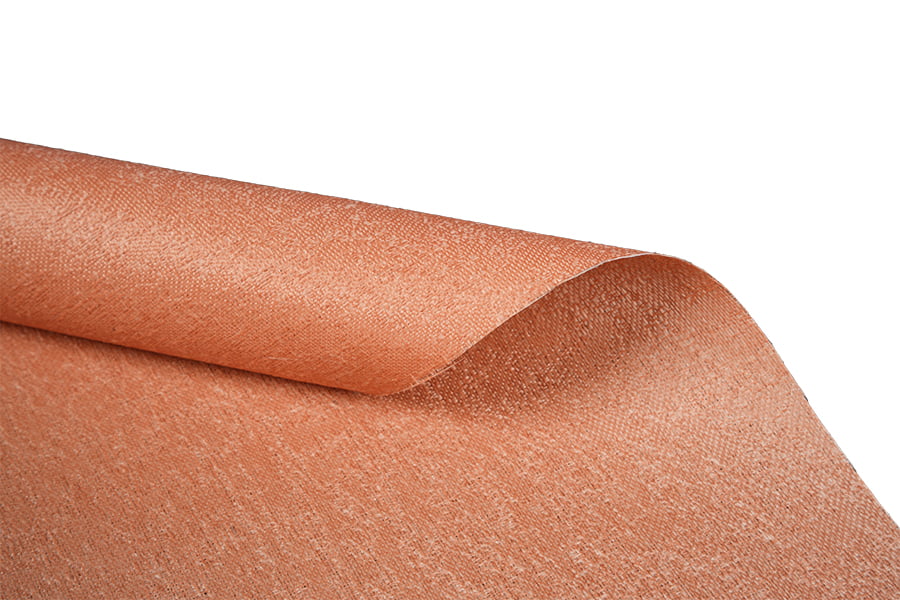

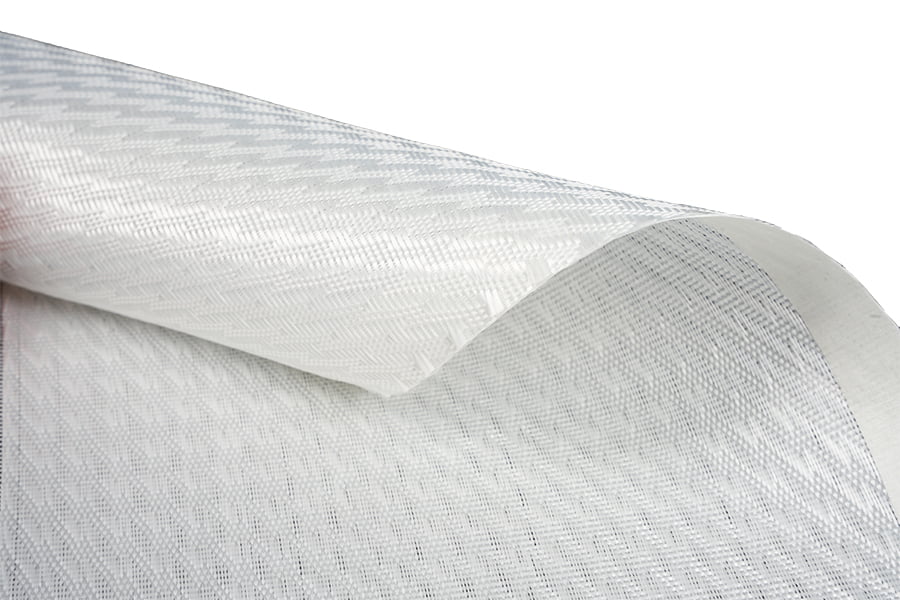

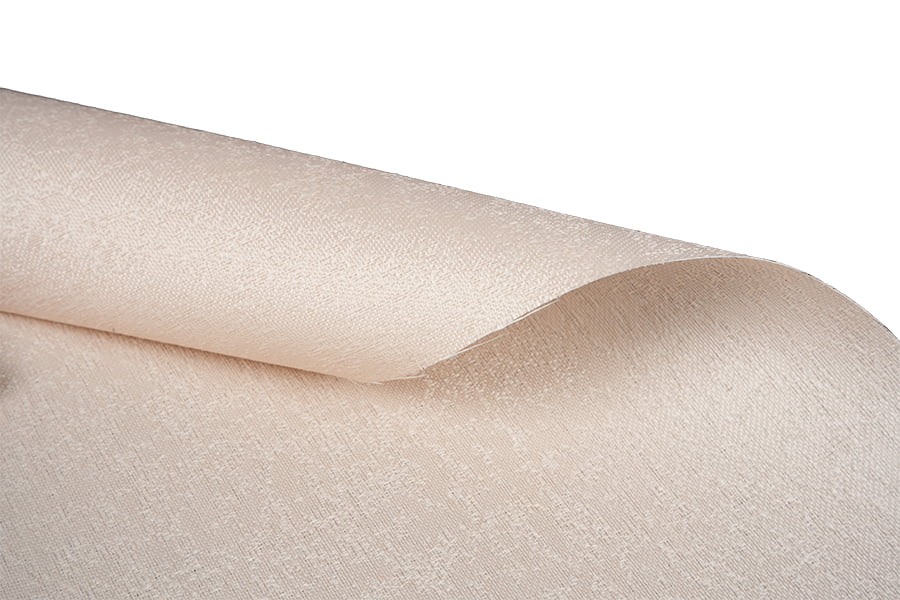

Jacquard-patterned fiberglass wallcovering fabric engineered for interior wall protection. The fabric is woven from continuous filament fiberglass yarns using a jacquard loom, producing decorative patterns with dimensional stability. A waterproof finish is applied to the front surface, achieving a water contact angle above 90 degrees and limiting liquid penetration. The fireproof treatment, integrated into the fiber structure, delivers a limiting oxygen index of 34% or higher and complies with interior wall finish fire standards. The fabric is supplied in rolls suitable for direct application to wall surfaces with standard wallcovering adhesives.

Waterproof Surface

Front-surface waterproof finish produces a water contact angle above 90 degrees. Resists liquid penetration and allows routine cleaning with a damp cloth.

Fireproof Performance

LOI of 34% or higher with self-extinguishing behavior. Complies with EN 13501-1 Class B-s1, d0 for interior wall finishes.

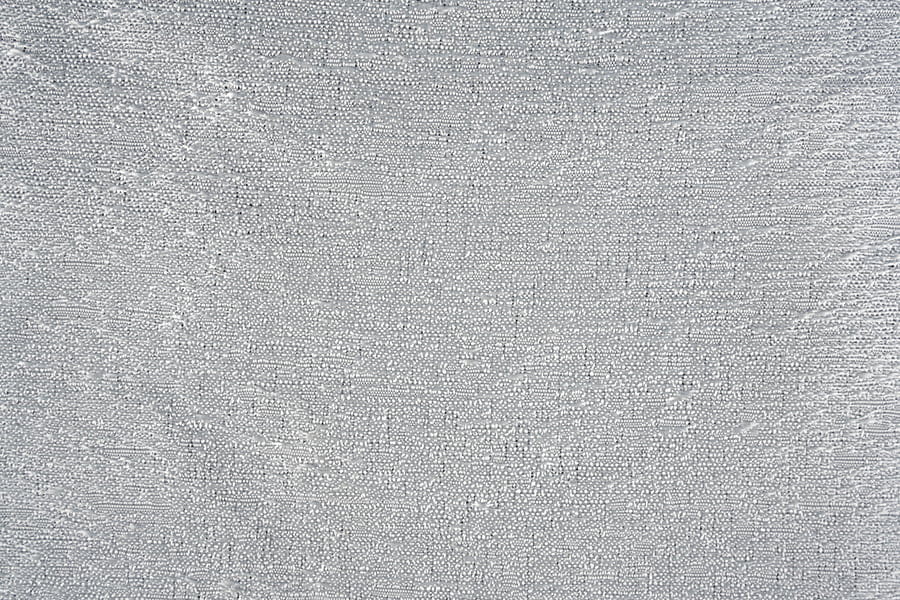

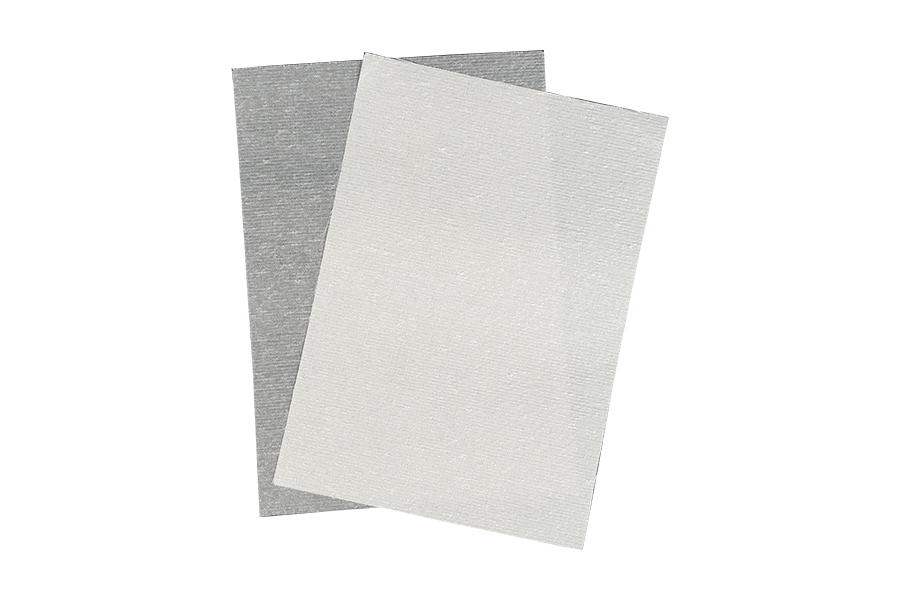

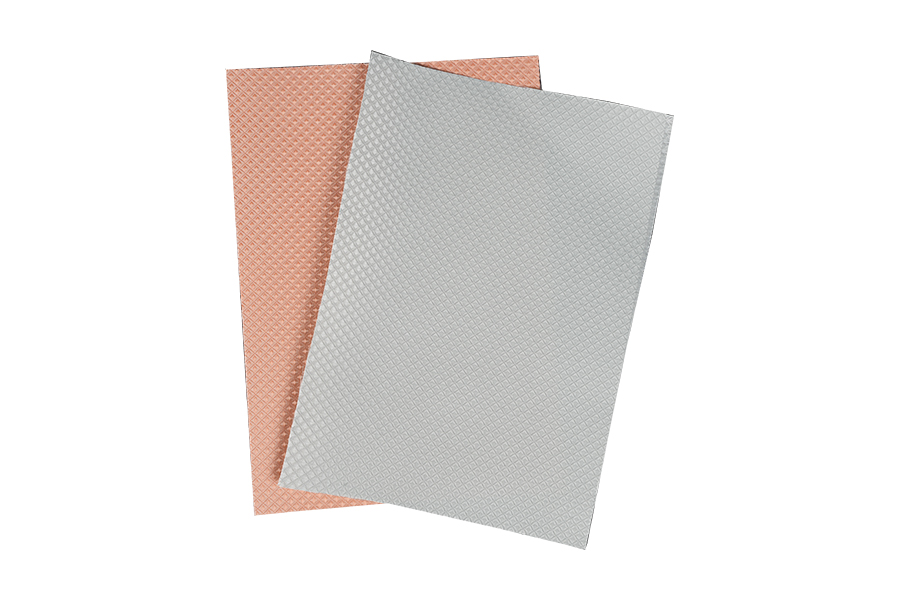

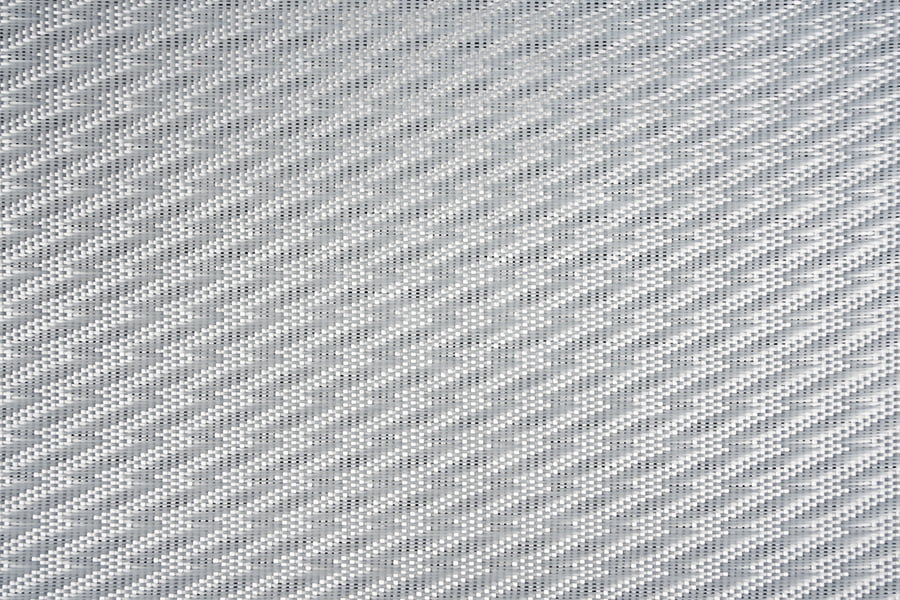

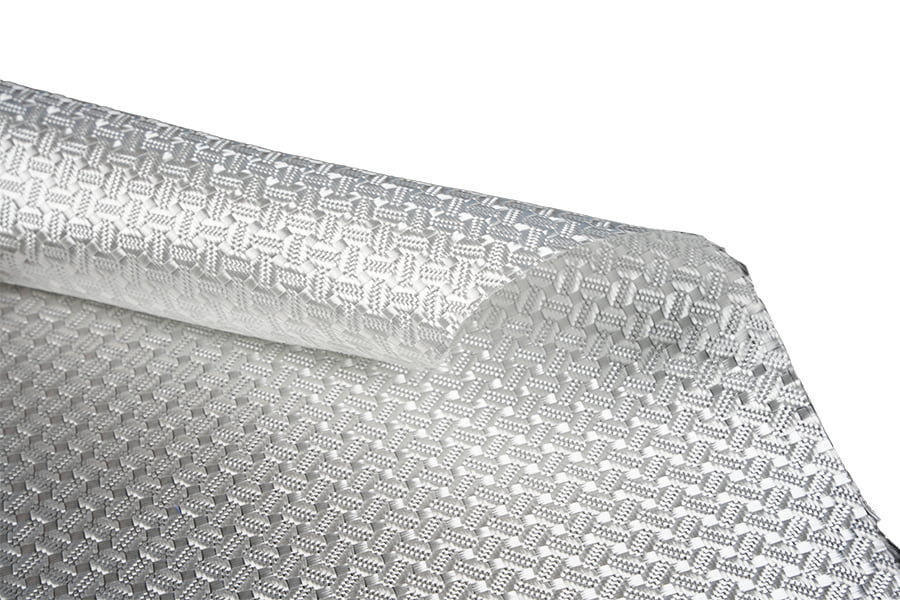

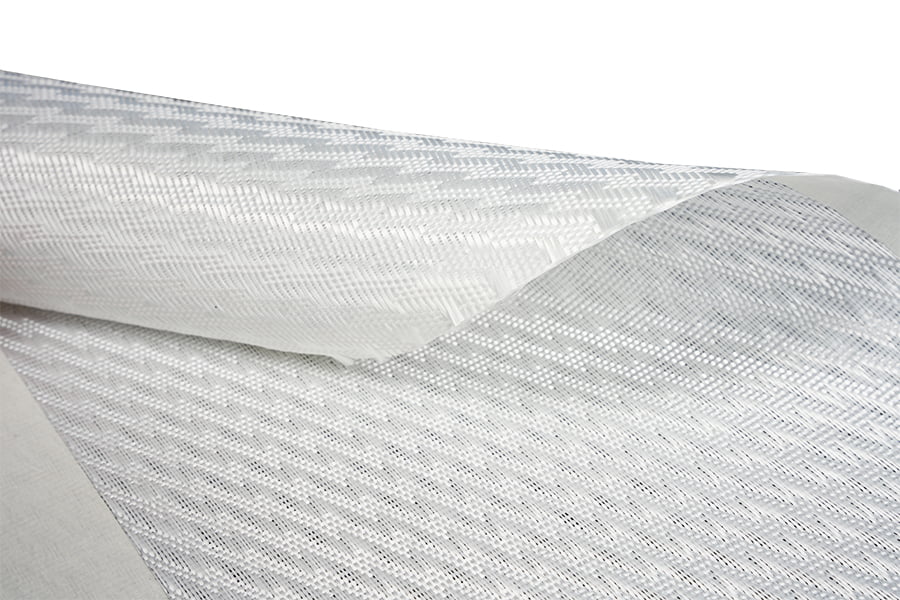

Jacquard Pattern

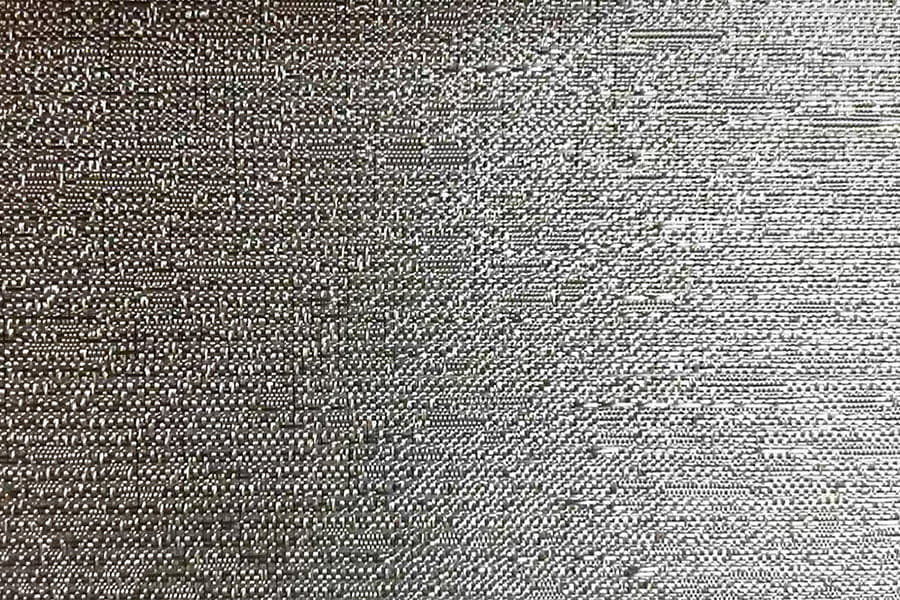

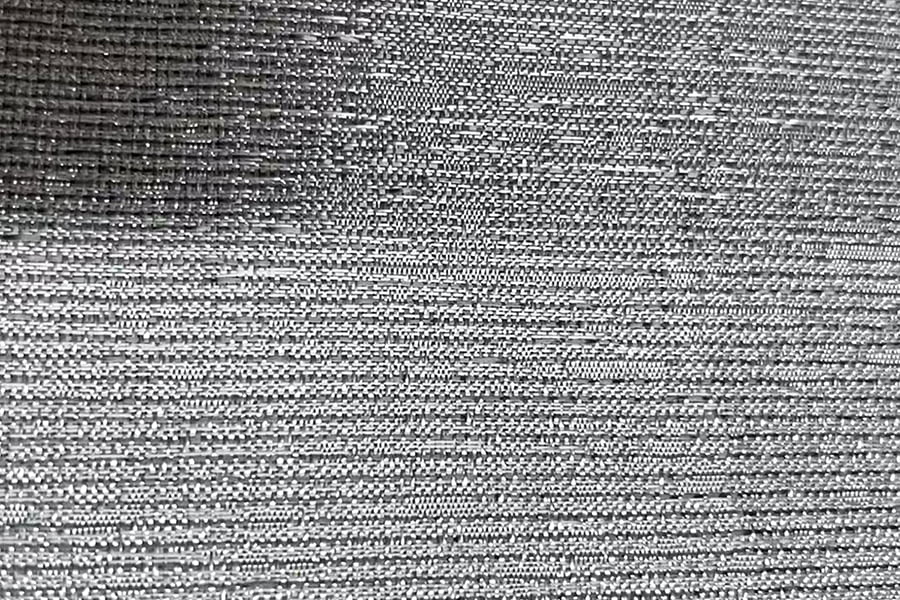

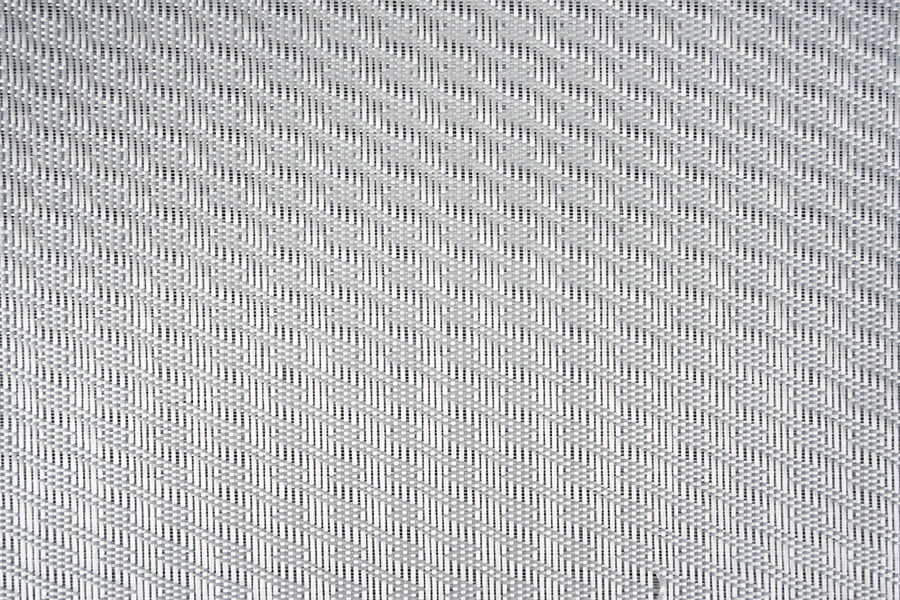

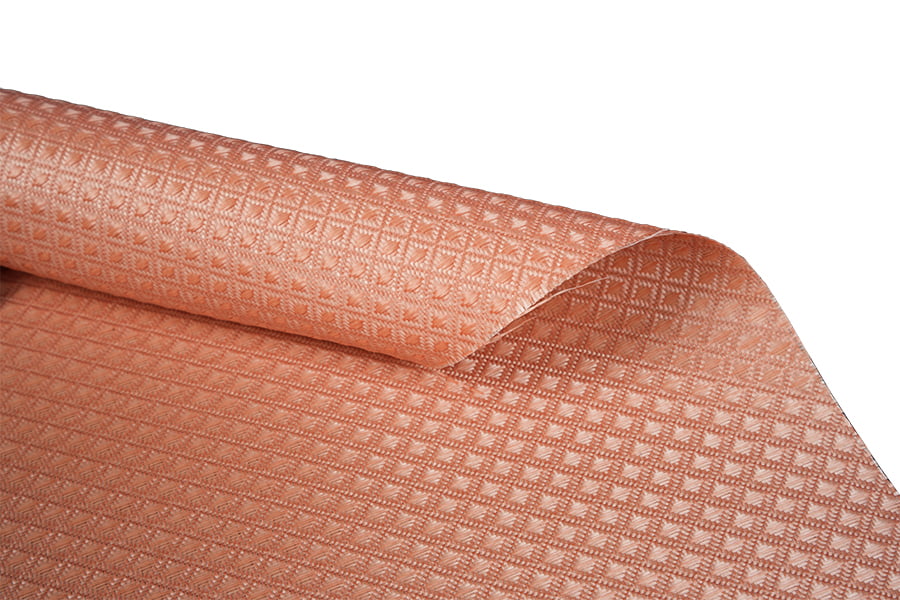

Decorative patterns woven on a jacquard loom, producing dimensional texture and visual depth. Custom pattern designs are available.

Dimensional Stability

Fiberglass substrate resists stretching, shrinking, and sagging after installation. Maintains pattern alignment across seams and corners.

Technical Parameters

PatternJacquard woven, custom available

Weight240 – 420 g/m²

Width1000 – 2000 mm

Waterproof ratingContact angle > 90°, no penetration at 500 mm head

LOI≥ 34%

Fire classificationEN 13501-1 Class B-s1, d0

AdhesivePVA-based wallcovering adhesive

Tensile strength (warp)≥ 500 N/50mm

Application Fields

Hotel corridors and lobbies Office reception areas Retail interior walls Residential feature walls Healthcare facility interiors Restaurant and cafe walls Elevator interiors Conference room finishes

Frequently Asked Questions

Can the fabric be used in bathrooms?

Yes. The waterproof front surface resists liquid penetration and can be wiped clean. For direct water spray zones, seal seams with a waterproof adhesive and apply a clear protective topcoat.

How is the wallcovering installed?

Apply standard PVA-based wallcovering adhesive to the wall surface. Position the fabric and smooth with a trowel or roller to remove air pockets. Trim excess at edges with a sharp knife.

Are custom patterns available?

Yes. Custom jacquard patterns can be developed based on client artwork or design specifications. Minimum order quantities apply to custom patterns.

What is the recommended cleaning method?

Wipe with a damp cloth or sponge using mild soap solution. Avoid abrasive cleaners or scrubbing pads that may damage the waterproof surface. Rinse with clean water and dry with a soft cloth.

Reference Data

Property	Value	Standard
Pattern	Jacquard woven, custom available	Internal
Weight	240 – 420 g/m²	ASTM D3776
Width	1000 – 2000 mm	Internal
Waterproof rating	Contact angle > 90°, no penetration at 500 mm head	Internal
LOI	≥ 34%	ASTM D2863
Fire classification	EN 13501-1 Class B-s1, d0	EN 13501-1
Tensile strength (warp)	≥ 500 N/50mm	ASTM D5035
Dimensional stability	< 0.5% shrinkage	Internal
