Jiaxing Jiete New Material Co., Ltd, established in 2010, is a professional manufacturer of fiberglass fabric products and solutions. Located in Haining City, Zhejiang Province, the company enjoys convenient transportation. We are China Flame retardant lightweight flexible electroplated fiberglass fabric Suppliers and Wholesale Flame retardant lightweight flexible electroplated fiberglass fabric Exporter. We specialize in fiberglass fabric production and offer customized design, development, and manufacturing services. Our key facilities include Karl Mayer warping-slashing machines, air-jet looms, Dornier rapier looms, and multiple coating machines. Main products include fiberglass fabric, aramid fabric, and coated fiberglass fabrics such as PTFE architecture membrane, PTFE coated fabric, silicone coated fabric, PVC coated fabric, PU coated fabric, and other composites. Custom solutions are available. Guided by scientific management, innovation, and win-win cooperation since 2010, we have achieved a global market position and built strong customer partnerships. Warmly welcome all to visit and negotiate.

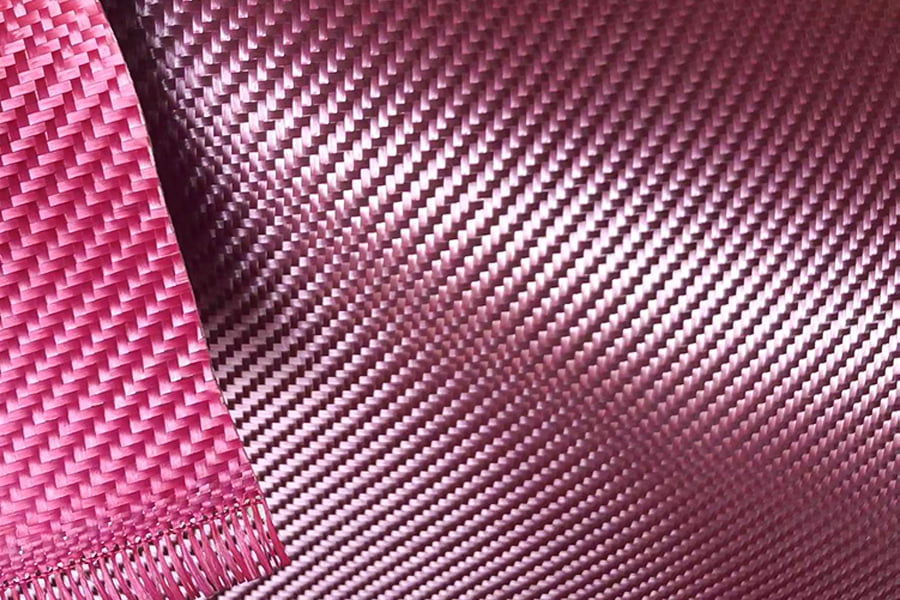

Flame Retardant Lightweight Flexible Electroplated Fiberglass Fabric
Electroplated fiberglass fabric integrating flame retardancy, lightweight construction, and flexibility. The electroplating process deposits a nickel-copper alloy coating onto continuous filament fiberglass yarns, achieving surface resistivity ≤ 0.5 Ω/sq while maintaining a bend radius below 3 mm. The flame retardant additive (phosphorus-nitrogen compound) is incorporated into the sizing, delivering a limiting oxygen index ≥ 32% without compromising pliability.
Core Strengths
Flame Retardant
Phosphorus-nitrogen additive in sizing achieves LOI ≥ 32%, self-extinguishing per UL 94 V-0. No topical coatings that could degrade or wash off.
Lightweight
Areal weight of 180–220 g/m², approximately 40% lighter than conventional coated fabrics of equivalent thickness.
Flexible & Durable
Bend radius ≤ 3 mm with flexural endurance exceeding 2000 cycles (MIL-C-20696). Electroplated coating conforms to fibers without stiffening.
EMI Shielding
Nickel-copper alloy coating provides surface resistivity ≤ 0.5 Ω/sq, effective for electromagnetic interference shielding and static dissipation.
Corrosion Resistant
Protective nickel layer resists oxidation and corrosion, maintaining conductivity and mechanical properties in harsh environments.
Product Properties
Application Fields
- Aerospace ducting and fireproof barriers
- Automotive engine bay heat shields and wire harness wraps
- EMI gaskets and shielding for electronic enclosures
- Flexible heating element substrates
- Protective sleeves for hydraulic and fuel lines
- Composite tooling release layers with static control
Handling & Installation
Use sharp scissors or rotary cutters; electroplated edges do not fray. Avoid bending radii below 3 mm to prevent coating micro-cracks. Bond with silicone-based adhesives for high-temperature applications. Ground via conductive clips for EMI shielding effectiveness. Clean with isopropyl alcohol; avoid abrasive scrubbing.
Frequently Asked Questions
Technical Specifications
| Property | Value | Test Method |
| Thickness | 0.25 – 0.60 mm | ASTM D1777 |
| Areal weight | 180 – 220 g/m² | ASTM D3776 |
| Surface resistivity | ≤ 0.5 Ω/sq | ASTM D257 |
| LOI | ≥ 32% | ASTM D2863 |
| Tensile strength (warp) | ≥ 650 N/50mm | ASTM D5035 |
| Operating temperature | –30 °C to +220 °C | Internal |
| Flexural endurance | > 2000 cycles | MIL-C-20696 |
